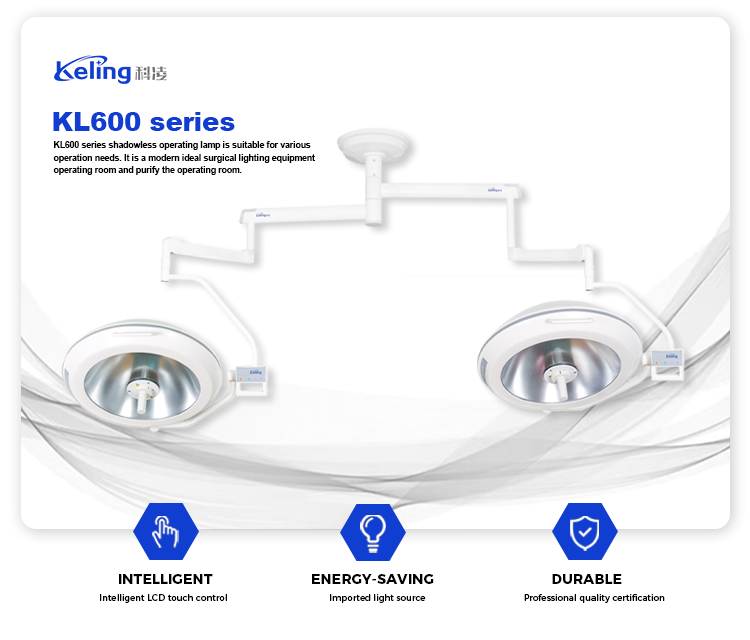

통합 수술용 그림자없는 조명 -KL600

모드 KL600
Illumination at 1m(lux) 80000~140000
Color temperature(K) 4500±500
Color rendering index(Ra) 100≥Ra≥85
Light field diameter at lm (cm) 10-28
Depth of light beam(cm) ≥ 700
Brightness level adjustment CPU light-dimmer
The value of total irradiance (mW/m 2lx) <6
Total irradiance ≤ 600 W/m 2

이 양식을 작성하려면 브라우저에서 JavaScript를 활성화합니다.

카테고리:

설명

Performance Requirements:

  1. Main Material of the Equipment: The lamp head is made of a single-piece die-cast aluminum alloy, which has excellent heat dissipation, thereby extending the lifespan of the LED lights.
  2. Other Materials: The titanium alloy large arm is free of welding, ensuring that each angle is 90°, which guarantees precise positioning and no drift of the shadowless light.
  3. Imported Spring Arm: The spring arm allows flexible vertical adjustment.
  4. Light Source: The imported LED cold light source has no infrared radiation, and its nano-coating ensures optimal heat dissipation. This effectively prevents moisture loss and infection at the surgical wound, promoting rapid post-surgical recovery.
  5. Brightness Adjustment: Uses digital, stepless control for LED brightness, allowing operators to adjust the brightness according to their preference.
  6. Spot Size Adjustment: Features focusable spot diameter function.
  7. Switching Power Supply: Uses an imported switching power supply to control voltage, ensuring that the working voltage remains stable at all times.
  8. Detachable Handle Cover: Easy to clean and disinfect.
  9. Light Source Lifespan: Average lifespan of 50,000 hours.
  10. Shadowless Effect (One Baffle): When the beam is blocked by one baffle, the illuminance at the center of the spot should not be less than 35% of the center illuminance.
  11. Shadowless Effect (Two Baffles): When the beam is blocked by two baffles, the illuminance at the center of the spot should not be less than 38% of the center illuminance.
  12. Shadowless Effect (Deep Cavity Tube): Remaining illuminance ≥ 70%.
  13. Shadowless Effect (One Baffle and Deep Cavity Tube): Remaining illuminance ≥ 32%.
  14. Shadowless Effect (Two Baffles and Deep Cavity Tube): Remaining illuminance ≥ 34%.
